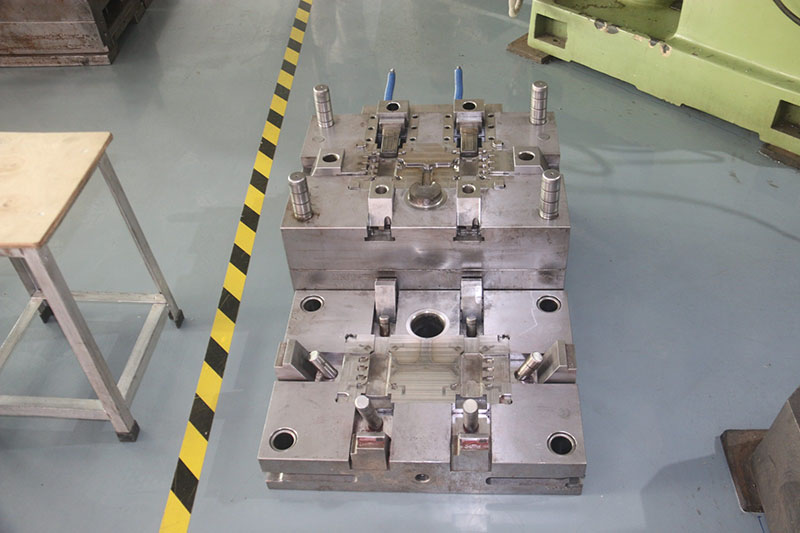

A die-casting mold is a tool for casting metal parts. It is a tool that completes the die-casting process on a dedicated die-casting die forging machine. The basic process of die casting is: the molten metal is first cast at low speed or high speed and filled into the cavity of the mold. The mold has a movable cavity surface, which is pressurized and forged along with the cooling process of the molten metal, which eliminates the shrinkage of the blank. Loose defects also cause the internal structure of the blank to reach the forged state of broken grains. The comprehensive mechanical properties of the blank are significantly improved.
The die casting mold, often referred to as the die, is an essential component of the process. It is designed to withstand the high pressures and temperatures of the molten metal. The type of mold chosen for a particular project depends on several factors, including the material to be cast, the design of the part, and production volume.
There are two main types of die casting molds:
These molds are designed to produce one part per cycle. They are ideal for low to medium-volume production and are typically used when high precision is required for each part.
These molds can produce multiple parts in a single cycle, making them more efficient for high-volume production. They are often used when the same part is required in large quantities. However, designing multi-cavity molds is more complex because the parts need to be evenly distributed within the mold to ensure uniform cooling and solidification.
Die casting tools are the machines and devices used to aid in the casting process. These tools are responsible for handling the molten metal, applying pressure, and ensuring the mold is correctly filled.
There are some key components of die casting tools below:
The injection system is responsible for delivering molten metal into the mold at high pressure. It is a critical part of ensuring that the metal fills the mold uniformly and does not leave air pockets or defects.
Once the molten metal is injected, it needs to cool down and solidify. The cooling system is designed to regulate the temperature of the mold and speed up the cooling process. This is crucial for maintaining the structural integrity and surface quality of the casting.
After the part solidifies, it must be removed from the mold. The ejection system uses mechanical or hydraulic forces to push the part out of the mold cavity. This ensures that the part can be extracted without damaging it.
These are smaller components within the mold that help create internal features such as holes, threads, or cavities in the casting. They are often removable to allow for easier maintenance and to prevent wear.
The mold base is the foundation that holds the mold components together. It ensures that the mold is aligned properly during the casting process.
The design of die casting molds and tools is critical to achieving high-quality results. There are some key design considerations below:
The choice of material for both the mold and tooling is important for durability and cost-effectiveness. High-strength steels are often used for molds, while tool steels or alloys might be used for inserts and core pins.
Uniform heat distribution is crucial in die casting to prevent defects like warping, shrinkage, or surface imperfections. The mold should be designed to allow for efficient heat transfer and uniform cooling.
The parting line is where the two halves of the mold meet. It’s essential to design the parting line in a way that minimizes visible seams on the casting and allows for easy ejection of the part.
Draft angles are the slight tapering of the mold walls that allow the casting to be removed from the mold without causing damage. Proper draft angles reduce friction and wear on both the mold and the part.
Venting is important to ensure that air or gases trapped inside the mold cavity can escape. Proper venting prevents air pockets, voids, or defects in the casting.

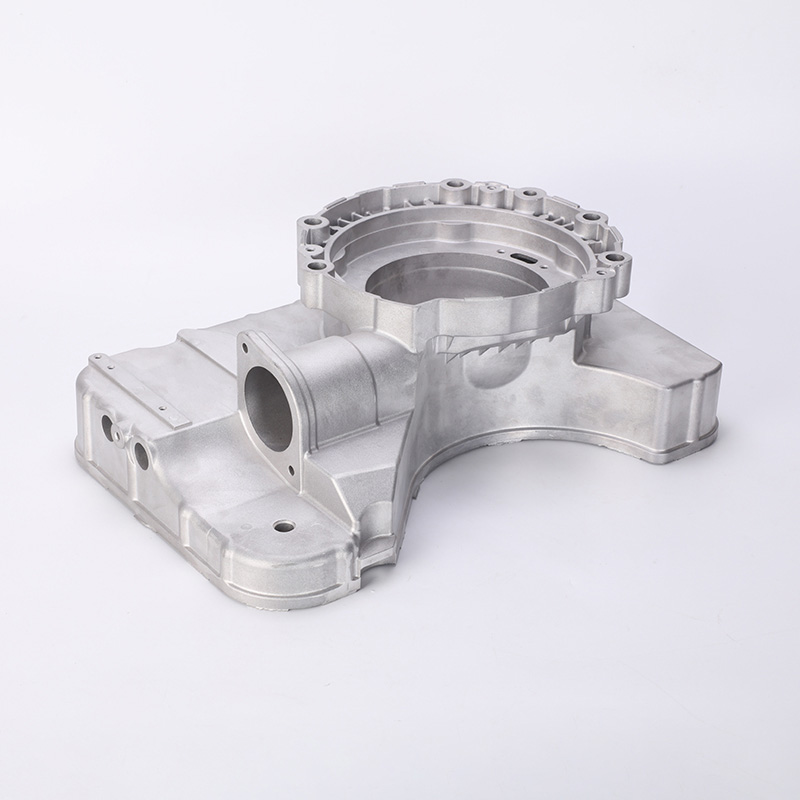

The quality of the molds and tools directly affects the outcome of the die casting process.
With careful mold design, the final cast part will meet tight tolerances, ensuring that it functions as intended without the need for extensive post-processing.
Proper cooling, ventilation, and design considerations can significantly reduce common casting defects such as porosity, shrinkage, and surface blemishes.
Well-maintained and properly designed molds and tools can improve the overall efficiency of the casting process, reducing cycle times and lowering production costs.
Mold cavities should be cleaned regularly to prevent the buildup of residue or contaminants that could affect casting quality.
Routine inspections help identify any signs of wear, cracks, or damage. Early detection allows for timely repairs before significant damage occurs.
Moving parts, such as ejector pins and slides, require lubrication to reduce friction and prevent excessive wear.
